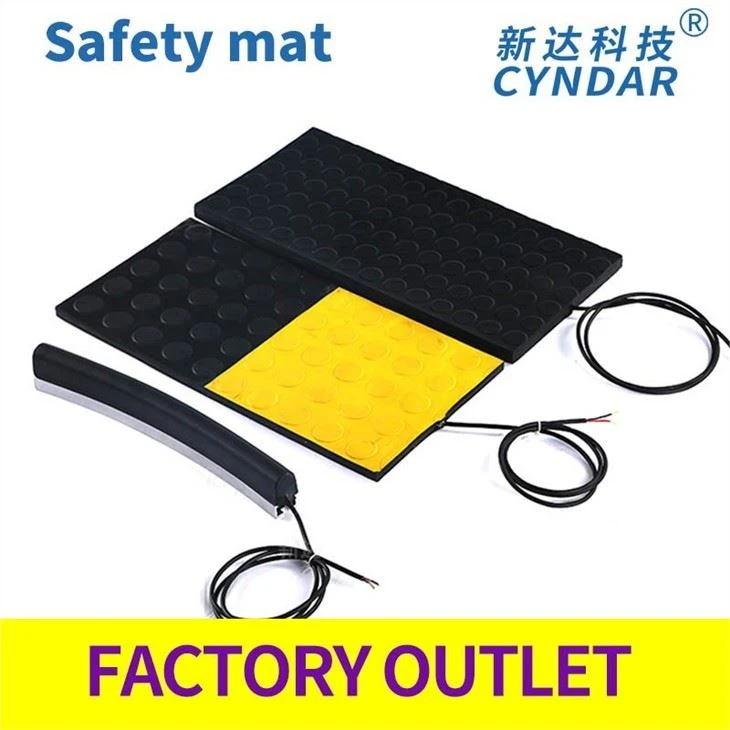

The safety mat is a pressure-sensitive safety protection device. When a set minimum weight is applied to the safety mat, the switch will be closed, and the controller will send a stop signal to the protected machine to stop its movement. Reliably protect the operator from various potential hazards.
The safety carpet adopts a special heavy-duty rubber material, a single-piece die-casting impact-resistant structure, will not peel off, has excellent resistance to the corrosion of various acids, alkalis, salts and other chemicals, and has a dynamic load-bearing capacity of 400-800Kg. The wheels are rolled, and the number of work is expected to exceed one million. The shape of the friction point allows installation in any direction.
Features: 1. Any rectangular size can be assembled
2. Have CE certification
3. Use in combination with safety mat controller
Product introduction:
Sensing safety carpet | PSM4 |
Adaptive detection range | Detect the presence of operators and items |
Recommended occasions | It is applicable to the safety protection of mixed areas of people and small vehicles |
Service environment requirements | It is suitable for indoor and outdoor use, and the ambienttemperature range is - 10 degree - plus 60 degree |
Safety carpet thickness | 14 millimeter |
Surface protective material | NBRrubber |
Surface pattern and color | pattern anti-skid surface (black, yellow, red) |
Edge bandingform | Aluminurwdgesealing |
Applicable industry | Light and heavy industrial occasions such as paper industry, electronic industry, automobilewelding production line, forging production line, general industrial application and automatic palletizer |
Ordering instructions | Provide the size of safety carpet and the size or pattern of safety protection area |
Model specification
PSM4-XXXYYY-Z
1.XXX: length dimension (unit: mm)
2.YYY: width dimension (unit: mm)
3.Z: color
B: black（Standard color）.R: Red. Y: Yellow.
Size description:
Size selection:
The following sizes are regular sizes, other sizes can be customized or spliced, please consult customer service for details
Product Size（mm） | type of output | Entry cable |
| 300300 | NO | 4-core wire |
| 400400 | NO | 4-core wire |
| 500250 | NO | 4-core wire |
| 600400 | NO | 4-core wire |
| 750250 | NO | 4-core wire |
| 750500 | NO | 4-core wire |
| 750750 | NO | 4-core wire |
| 1000500 | NO | 4-core wire |
| 1000750 | NO | 4-core wire |
| 10001000 | NO | 4-core wire |
| 1500500 | NO | 4-core wire |
| 1500750 | NO | 4-core wire |
| 15001000 | NO | 4-core wire |
Technical parameters of safety mats:
Tsize | It can be specially made according to requirements, with length of 200mm-1000mm and width of 200mm-3000mm |
Underpressure | Dynamic 500kg, solid 700kg |
Surface material | Rubber(red / yellow / Black optional) |
Control level | Shared with controller to reach level 3 |
Degreeof protection | IP65 |
Ambient temperature | -10 degree to 60 degree |
Thickness | 14mm |
Trigger force | Adult 30kg |
Cable length | 3Mand 5moptional |
Response time | Less than 30ms |
Weight | About30kg/ sq.m |
Chemical resistance | Generally |
Material ability | Generally |
Service life | A million times |
Waterproof | Generally |
Anti mineral acid | Generally |
Anti organic acid | Generally |
Anti alcohol | Generally |
Anti ethanol | Generally |
Corrosion protection | Generally |
Anti petroleumsolvent | Generally |
Anti bio oil solvent | Generally |
Type of output | No(normally open) |
Maximum voltage | DC24V |
Safety controller parameters:
| Model | Tner-A31 |
Power supply | DC24V |
Voltage tolerance | plus 10 percent /-20 percent |
Power waste | 2.9W |
Output | |
Relay safety output | 3N0 plus 1NC |
Transistor signal output | < 500ma=""> |
Relay contact capacity | |
AC-1 | 6A/250VAC/1500VA |
AC-15 | 4A/240VAC |
DC-1 | 6A/24VDC/150W |
DC-13 | 4A/24VDC |
Maximum switching capacity | 12A (distributed on all safety output contacts) |
Contact resistance | <> |
Minimum load | 10mA/5V |
Contact material | AgSn02 plus 0.2pmAu |
For more parameters, please download the safety control manual
